Brand: TERENZIO
Max Working Force: 1000T
Maximum pressure: 260 Bars
Piston diameter: 700mm
Moving plate stroke: 400mm

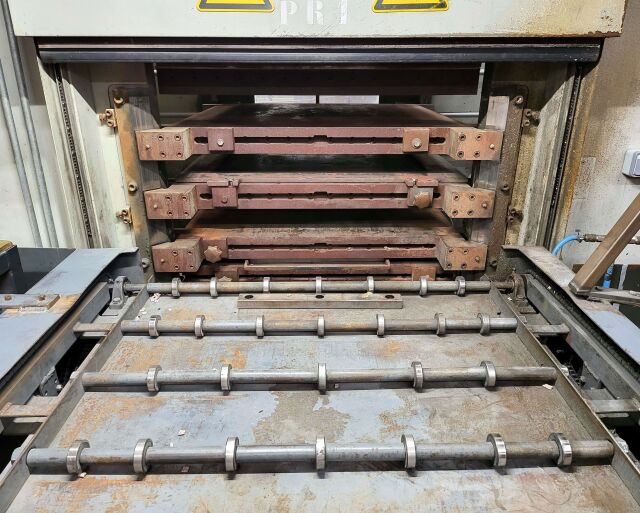

Number of heated trays: 5
Number of workspaces: 4
Light of each gap: 100mm
Tray dimensions: 1000 x 1000 mm
Tray heating: Steam
Climbing speed: 100mm/sec
Compression speed: 0.5/2.6mm/sec
descent speed: 100mm/sec
Double pump motor: 30kW
Capacity of hydraulic pumps: 65l and 26 l
Hydraulic oil: Arnica 46 Agip
Hydraulic oil quantity: 450l
Supply voltage: 220V 50Hz
Overall dimensions of the press: 3600x1910mm
Press height: 3600mm
Press weight 22000kg
Hydraulic pack weight: 2000kg
Electrical cabinet weight: 400kg
Installed power: 32 kW
